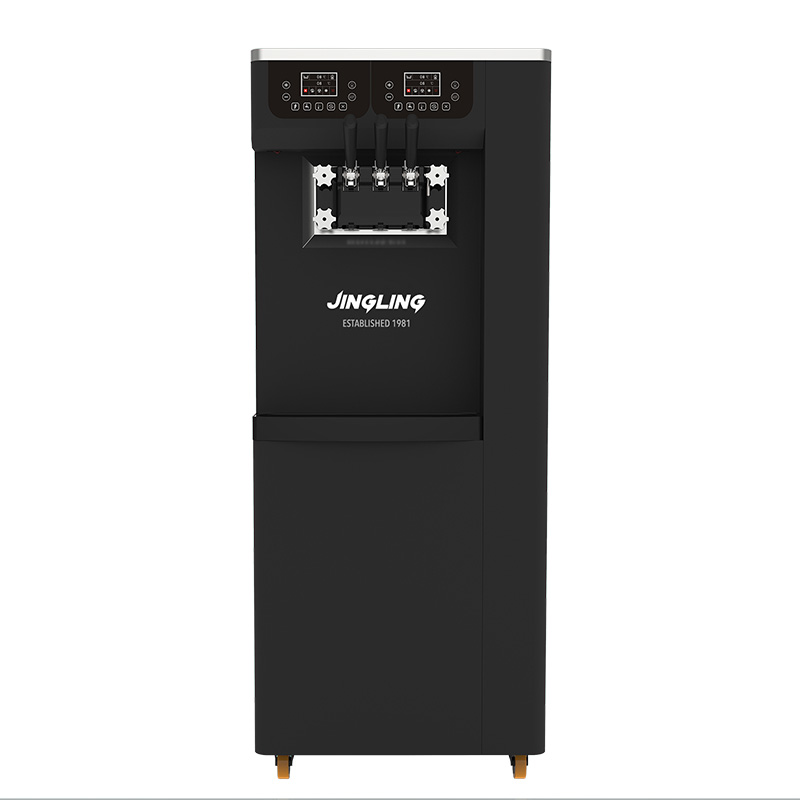

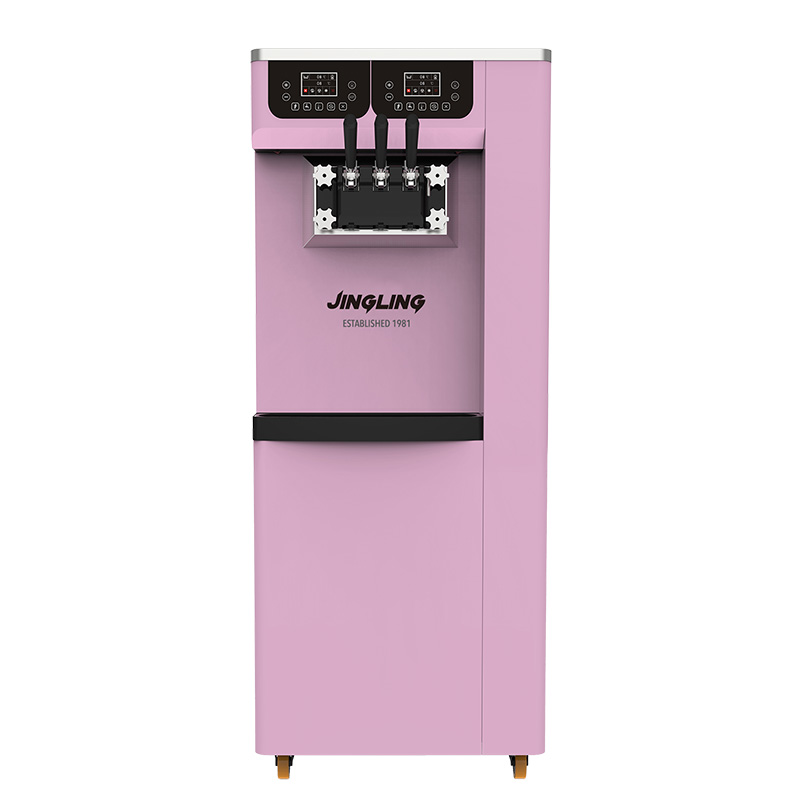

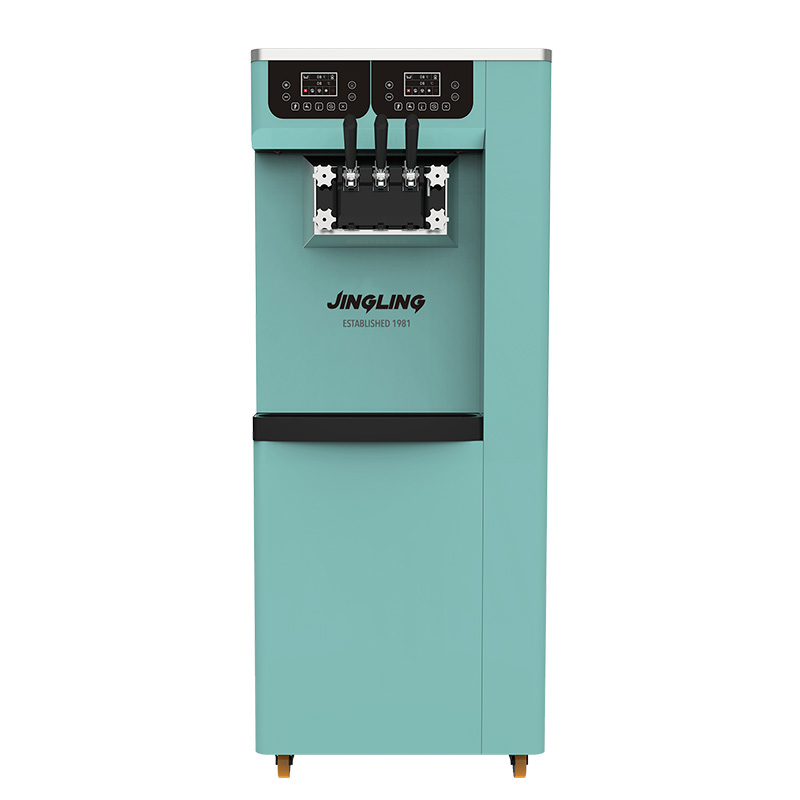

SF95Plus Italian worm double system expansion pump

发布时间:2023-01-04人气:123

SF95Plus stands on the shoulder of SF95T as a starting point.

Dual system (whether it is a refrigeration system, a transmission system, or a control system, all can operate independently)

Although it is a collection of two SC91Plus, it is better.


Hot business needs large production? It's amazing to be able to make 20 cups of ice cream at a time.


Do you think this is enough? NO! 20 ice creams are coming again at 3 minutes interval~


Too busy and do not have time to feed frequently? Every time you fill up, you can last 375 cups of ice cream.


Need a puffing pump to improve the taste of ice cream? Ice cream machine manufacturers have arranged it properly, and the expansion pump transmission system is an Italian worm gearbox motor that runs independently.


Although SF95Plus is like a perfect incarnation, but also a warm reminder: buy rationally!

It cannot be because of this machine's too many advantages, not simply because of its love for Jingling refrigeration, but also not because of its value.

It is to consider whether buying SF95Plus can bring all the advantages into full play? Whether it will not face the sense of loss of being overkill...

Double system expansion pump: worm gear and worm independent transmission system 1~6 gears adjustable expansion rate


Double system production: Both left and right hoppers can operate completely independently without interference


Large capacity hopper: 2x 15L hopper


Super quiet: Italian worm gear box + motor drive system


Throat seat lock function: a safety system to protect operators


Pre-cooling and fresh-keeping system: a new upgraded version of pre-cooling and fresh-keeping in Germany in 2018

Remarks: The reference output data in the parameter list all come from the temperature/humidity/raw material/machine placement environment of the company's test room.



 MODEL

 SF95 Plus

 VOLTAGE

 220V/50HZ

 MAIN POWER

 2* 2000W

 Electric current

 2* 9A(ampere)

 MAIN COMPRESSOR

 France Tecumseh

 PER-COOLING GAS

 R134A

 Per-cooling system

 2~10℃ adjustable

 Per-cooling capacity

 490BTU

 PRODUCING GAS

 R404A

 Producing capacity

 2* 5865BTU

 Hardness setting

 1~15 gear adjustable

 First overload time

 7~16min (material 5~15 ℃)

 Reference output

 14~20CUP (80g/CUP)/TIME

  Interval overload time

 2~4min(material 5~10 )

 Puffing system 2

 1~6 gear Gravity expansion pump (adjustable)

 Expansion pump drive

 Italian worm gear box motor

 Puffing system 1

 1~4 gear expansion tube (optional)

 HOPER

 2 x 15L

 CYLIMDER

 2 x 2.1L

 NET WEIGHT

 270 KG

 PRODUCT SIZE

 870 x 620 x 1590(mm)

 PACKING SIZE

 1035 x 780 x 1790(mm)
